Features of 960x960mm cabinet size outdoor rental screen
1. stadium led display adopts special design with adjustable angle 75-90°according to the customer’s needs, so that could let all the audiences to view the display contents.

2,with lower consumption, high brightness with more than 6000 nits to meet the big football field environment.
3. With fiber-optical transmission system for LED Screen, reducing the phenomenon of delay signal because of the long distance of the football field, to ensure the image consistency.
4. With IP65 waterproof design, ensure that the screen can still work in the raining day

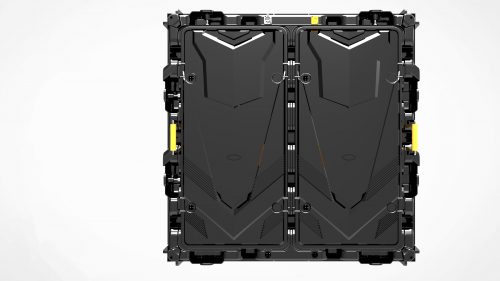

High quality Die-casting Aluminum LED Cabinet, Lightweight 30KG/pcs only, Strong and Durable.



LED Cabinet with handles and fast locks, easy to assemble, suitable for fixed installation advertising sue and stage rental use.



Perimeter Sports LED Billboard

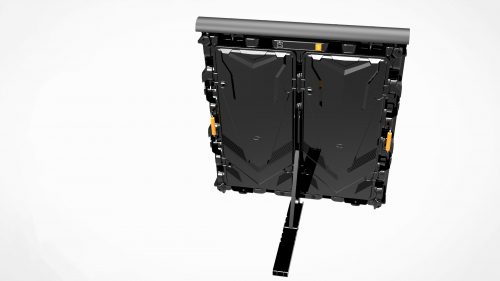

The cabinet can free adjustment between 75 and 90 degrees to ensure the best visual angle;All wiring connections are at outside of the cabinet body, It’s convenient to maintenance and the cabinet from the ground keep a distance of 2 cm.

Parameter

Pitch/mm P8 P10
Module size/mm 320×320 320×160
Density of pixel/(dots/m2) 15,625 10,000
Led encapsulation SMD3535 SMD3535
Resolution of module 40×40 32×16
Optimum viewing distance 8-100m 10-150m
View angle / ° 120 H,120 V 120H,120V
Max power consumption/W/M2 1000 1000
Size of cabinet/mm 960×960 960×960
Resolution of cabinet 120×120 96×96
Weight of cabinet/kg 30 30
Driving method 1/5 scan constant current 1/2 scan constant current
Refresh rate Hz/S ≥2000 ≥2000
Luminance of white balance ≥7000 nits ≥6500 nits
Operation of Environmental Temperature/°C below 30  to  above 50
Working vlotage 110-220 VAC/+/- 10%
Grey scale/color displaying colors≥16.7M(synchronized)
Brightness adjustment 256 levels of each color(manually),100 levels of each color(automatically)
Input signal RF,S-Video,RGB,RGBH,YUV,YC&Composition ,etc
Control system Colorlight/Novastar
Average of non-failure life >50,00h
Life span >100,000h
Defect dot rate <0.0001
